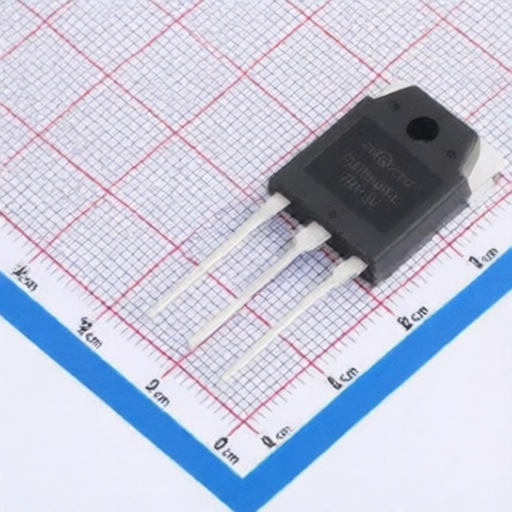

CRMICRO CRG15T120BNR3S
Manufacturer:
CRMICRO
Asian Brands
Mfr. Part #:
CRG15T120BNR3S
Package:
TO-3P
Customer #:
Key Attributes:
Silicon FS Trench IGBT
Description:
156W 1.2kV FS (Field Stop) TO-3P Single IGBTs RoHS
Datasheet:
CRMICRO CRG15T120BNR3S
Products Specifications
Manufacturer:
Package:
TO-3P
Td(off):
107ns
Pd - Power Dissipation:
156W
Td(on):
14ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
25pF
Input Capacitance(Cies):
1.513nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
81.5nC@15V
Pulsed Current- Forward(Ifm):
45A
Output Capacitance(Coes):
35pF
Switching Energy(Eoff):
700uJ
Turn-On Energy (Eon):
430uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CRMICRO
179 Products
The company is based on power semiconductor devices and power/analog integrated circuits, and is oriented to industrial electronics, consumer electronics, automotive electronics, and 5G communications markets. It has technology development and manufacturing platforms such as power devices, GaN, and MEMS sensors, and can provide products and applications with high reliability power devices and modules. The low-voltage, medium-voltage and high-voltage power device products developed by the company can be widely used in electric vehicles, solar energy, automotive electronics, mobile phone fast charging, white goods, general-purpose switches, power supplies and other industries.
