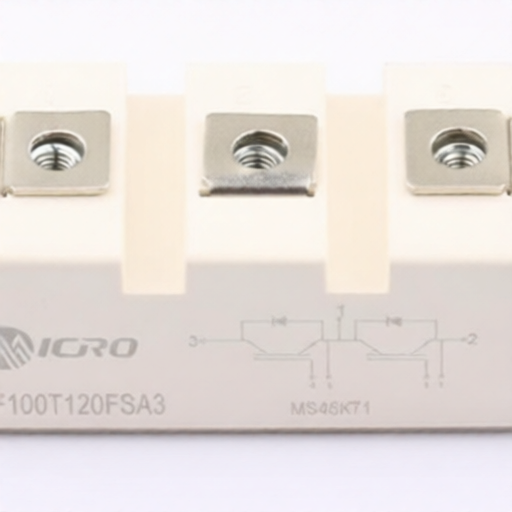

CRMICRO CRGMF100T120FSA3
Manufacturer:
CRMICRO
Asian Brands
Mfr. Part #:
CRGMF100T120FSA3
Package:
Screw Terminals
Customer #:
Key Attributes:
IGBT 1.2kV 100A Screw Terminals
Description:
IGBT 1.2kV 100A 428W Screw Terminals
Datasheet:
CRMICRO CRGMF100T120FSA3
Products Specifications
Manufacturer:
Package:
Screw Terminals
Td(off):
230ns
Pd - Power Dissipation:
428W
Td(on):
310ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.152nF
Input Capacitance(Cies):
9.6nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6V@4mA
Operating Temperature:
-40℃~+125℃
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
0.572nF
Switching Energy(Eoff):
2mJ
Turn-On Energy (Eon):
6.3mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 18 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CRMICRO
179 Products
The company is based on power semiconductor devices and power/analog integrated circuits, and is oriented to industrial electronics, consumer electronics, automotive electronics, and 5G communications markets. It has technology development and manufacturing platforms such as power devices, GaN, and MEMS sensors, and can provide products and applications with high reliability power devices and modules. The low-voltage, medium-voltage and high-voltage power device products developed by the company can be widely used in electric vehicles, solar energy, automotive electronics, mobile phone fast charging, white goods, general-purpose switches, power supplies and other industries.
