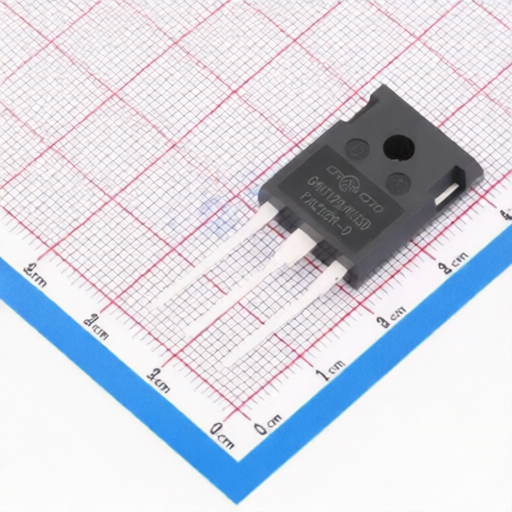

CRMICRO CRG40T120AK3SD
Manufacturer:
CRMICRO
Asian Brands
Mfr. Part #:
CRG40T120AK3SD
Package:
TO-247
Customer #:
Key Attributes:
IGBT 1.2kV 40A TO-247
Description:
IGBT 1.2kV 40A 333W Through Hole TO-247
Datasheet:
CRMICRO CRG40T120AK3SD
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
238ns
Pd - Power Dissipation:
333W
Td(on):
77ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
111pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@250uA
Gate Charge(Qg):
208nC@15V
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
131pF
Reverse Recovery Time(trr):
88ns
Switching Energy(Eoff):
1.5mJ
Turn-On Energy (Eon):
2.8mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
