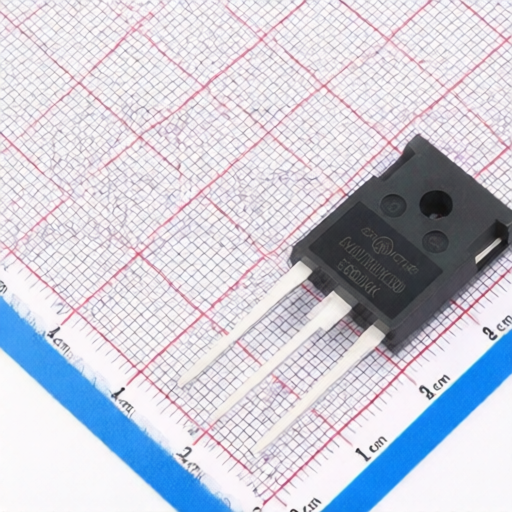

CRMICRO CRG40T120BK3SD
Manufacturer:
CRMICRO
Asian Brands
Mfr. Part #:
CRG40T120BK3SD
Package:
TO-247
Customer #:
Key Attributes:
IGBT 1.2kV 40A TO-247
Description:
IGBT 1.2kV 40A 278W Through Hole TO-247
Datasheet:
CRMICRO CRG40T120BK3SD
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
265ns
Pd - Power Dissipation:
278W
Td(on):
62ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
94pF
Input Capacitance(Cies):
3.823nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
239nC@15V
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
170pF
Reverse Recovery Time(trr):
88ns
Switching Energy(Eoff):
1.4mJ
Turn-On Energy (Eon):
3.3mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CRMICRO
179 Products
The company is based on power semiconductor devices and power/analog integrated circuits, and is oriented to industrial electronics, consumer electronics, automotive electronics, and 5G communications markets. It has technology development and manufacturing platforms such as power devices, GaN, and MEMS sensors, and can provide products and applications with high reliability power devices and modules. The low-voltage, medium-voltage and high-voltage power device products developed by the company can be widely used in electric vehicles, solar energy, automotive electronics, mobile phone fast charging, white goods, general-purpose switches, power supplies and other industries.
