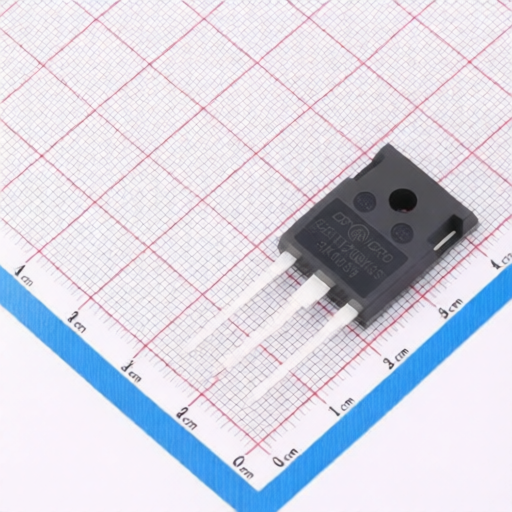

CRMICRO CRG25T120BK3S
Manufacturer:
CRMICRO
Asian Brands
Mfr. Part #:
CRG25T120BK3S
Package:
TO-247
Customer #:
Key Attributes:
IGBT 1.2kV 25A TO-247
Description:
IGBT 1.2kV 25A 278W Through Hole TO-247
Datasheet:
CRMICRO CRG25T120BK3S
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
200ns
Pd - Power Dissipation:
278W
Td(on):
48ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
40pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Gate Charge(Qg):
141.2nC@15V
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
77pF
Reverse Recovery Time(trr):
80ns
Switching Energy(Eoff):
800uJ
Turn-On Energy (Eon):
2.7mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CRMICRO
179 Products
The company is based on power semiconductor devices and power/analog integrated circuits, and is oriented to industrial electronics, consumer electronics, automotive electronics, and 5G communications markets. It has technology development and manufacturing platforms such as power devices, GaN, and MEMS sensors, and can provide products and applications with high reliability power devices and modules. The low-voltage, medium-voltage and high-voltage power device products developed by the company can be widely used in electric vehicles, solar energy, automotive electronics, mobile phone fast charging, white goods, general-purpose switches, power supplies and other industries.
