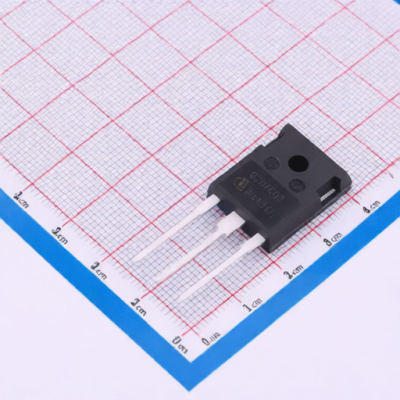

Infineon IGW20N60H3
Manufacturer:
Infineon
Mfr. Part #:
IGW20N60H3
Package:
TO-247-3
Customer #:
Key Attributes:
High speed IGBT in Trench and Fieldstop technology, 600V high speed switching series third generation
Description:
170W 600V FS (Field Stop) TO-247-3 Single IGBTs RoHS
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
194ns
Pd - Power Dissipation:
170W
Td(on):
17ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
32pF
Input Capacitance(Cies):
1.1nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
Gate Charge(Qg):
120nC@15V
Output Capacitance(Coes):
70pF
Switching Energy(Eoff):
240uJ
Turn-On Energy (Eon):
560uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
