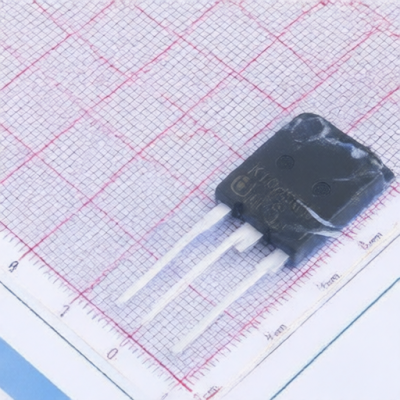

Infineon IKQ100N120CH7XKSA1
Manufacturer:
Infineon
Mfr. Part #:
IKQ100N120CH7XKSA1
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 1.2kV 166A TO-247-3
Description:
IGBT 1.2kV 166A 721W Through Hole TO-247-3
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
547ns
Pd - Power Dissipation:
721W
Td(on):
66ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
13nF@25V
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
Gate Charge(Qg):
696nC@100A,15V
Reverse Recovery Time(trr):
148ns
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
