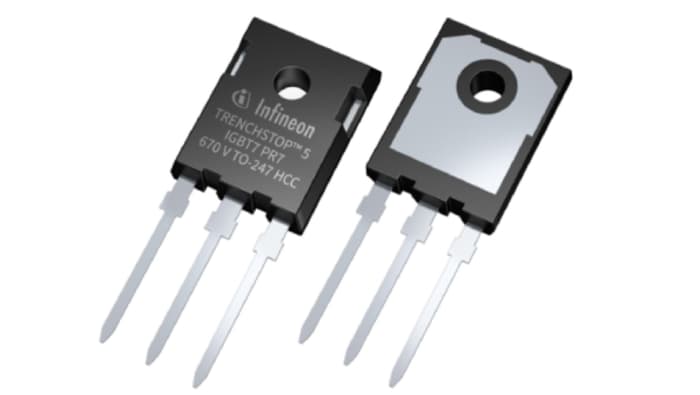

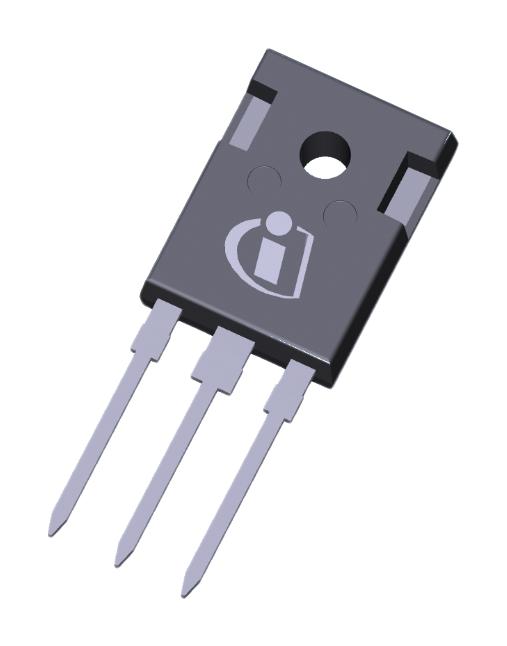

Infineon IKWH50N67PR7XKSA1
Manufacturer:
Infineon
Mfr. Part #:
IKWH50N67PR7XKSA1
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 670V 105A TO-247-3
Description:
IGBT 670V 105A 246W Through Hole TO-247-3
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
182ns
Pd - Power Dissipation:
246W
Td(on):
18ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
670V
Reverse Transfer Capacitance (Cres):
14.2pF
Input Capacitance(Cies):
2.846nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
Gate Charge(Qg):
127nC@50A,15V
Pulsed Current- Forward(Ifm):
5A
Output Capacitance(Coes):
36.4pF
Switching Energy(Eoff):
560uJ
Turn-On Energy (Eon):
980uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
