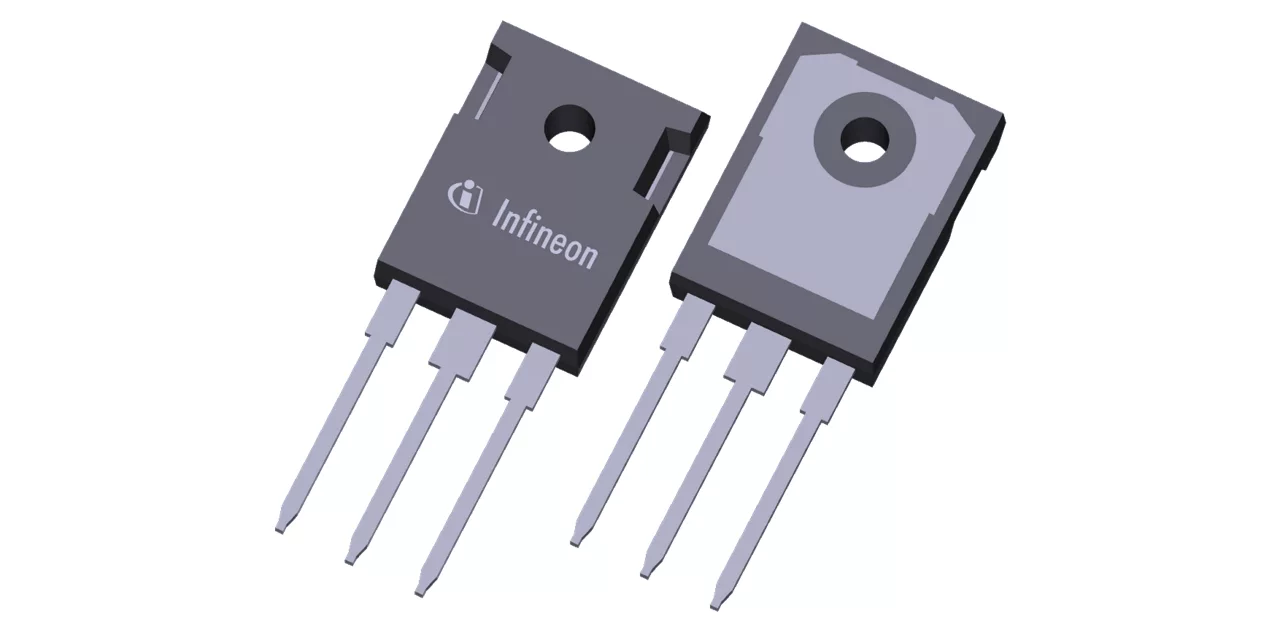

Infineon IHW20N65R5
Manufacturer:
Infineon
Mfr. Part #:
IHW20N65R5
Package:
TO-247-3
Customer #:
Key Attributes:
Resonant Switching Series Reverse conducting IGBT with monolithic body diode
Description:
150W 650V TO-247-3 Single IGBTs RoHS
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
150W
Td(off):
250ns
Td(on):
23ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
10pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
Gate Charge(Qg):
97nC@15V
Reverse Recovery Time(trr):
82ns
Switching Energy(Eoff):
160uJ
Turn-On Energy (Eon):
540uJ
Input Capacitance(Cies):
2.45nF
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
23pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 240 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
