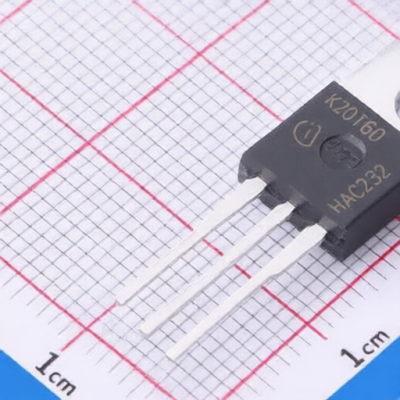

Infineon IKP20N60TXKSA1
Manufacturer:
Infineon
Mfr. Part #:
IKP20N60TXKSA1
Package:
TO-220-3
Customer #:
Key Attributes:
Low Loss DuoPack: IGBT in TRENCHSTOP and Fieldstop technology with soft, fast recovery anti-parallel Emitter Controlled HE diode
Description:
166W 600V TO-220-3 Single IGBTs RoHS
Products Specifications
Manufacturer:
Package:
TO-220-3
Td(off):
199ns
Pd - Power Dissipation:
166W
Td(on):
18ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
32pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.1V@290uA
Gate Charge(Qg):
120nC@15V
Reverse Recovery Time(trr):
41ns
Switching Energy(Eoff):
460uJ
Turn-On Energy (Eon):
310uJ
Input Capacitance(Cies):
1.1nF
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
71pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
