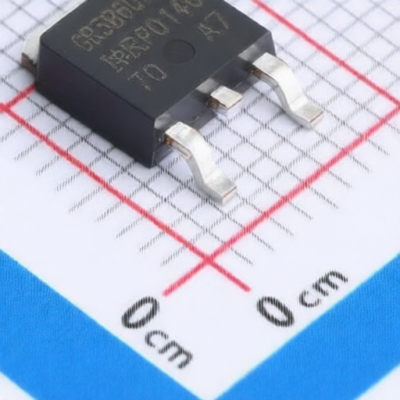

Infineon IRGR3B60KD2TRP
Manufacturer:
Infineon
Mfr. Part #:
IRGR3B60KD2TRP
Package:
DPAK
Customer #:
Key Attributes:
Insulated Gate Bipolar Transistor with Ultra Fast Soft Recovery Diode
Description:
52W 600V NPT (Non-Punch Through) DPAK Single IGBTs RoHS
Products Specifications
Manufacturer:
Package:
DPAK
Td(off):
110ns
Pd - Power Dissipation:
52W
Td(on):
18ns
Operating Temperature:
-55℃~+150℃
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
6.6pF
IGBT Type:
NPT (Non-Punch Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.5V@250uA
Gate Charge(Qg):
13nC@15V
Reverse Recovery Time(trr):
77ns
Switching Energy(Eoff):
39uJ
Turn-On Energy (Eon):
62uJ
Input Capacitance(Cies):
-
Pulsed Current- Forward(Ifm):
15.6A
Output Capacitance(Coes):
23pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
