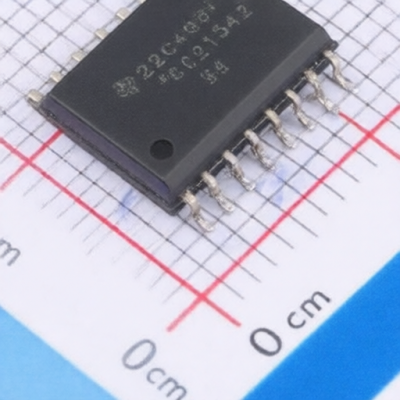

TI UCC21542DWR

TI UCC21542DWR

Name: TI UCC21542DWR
Brand: TI

Manufacturer: TI

Mfr. Part #: UCC21542DWR

Package: SOIC-14-300mil

Customer #:

Key Attributes: Reinforced Isolation Dual-Channel Gate Driver With 3.3-mm Channel-to-Channel Spacing Option

Description: 4A 16ns 12ns 6A SOIC-14-300mil Isolators - Gate Drivers RoHS

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

Package:

SOIC-14-300mil

Operating Temperature:

-40℃~+125℃@(Ta)

Isolation voltage(Vrms):

5700

Input Logic Level - High:

1.6V~2V

Current - Output High(IOH):

Rise Time:

16ns

Voltage - Supply:

9.2V~18V;3V~5.5V

Fall Time:

12ns

CMTI(kV/us):

100kV/us

Number of Channels:

Current - Output Low(IOL):

Quiescent Current:

2mA

Propagation Delay(tpd):

40ns;40ns

Load Type:

IGBT;MOSFET

Input Logic Level - Low:

0.8V~1.25V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2000
Sales Unit	Piece
