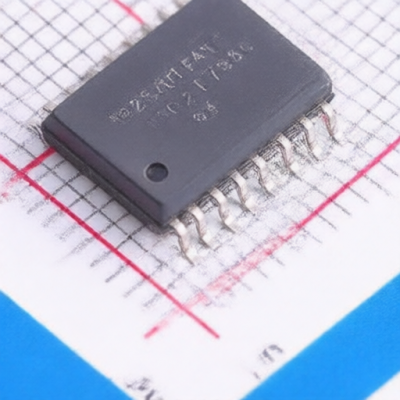

TI UCC21755QDWRQ1
Manufacturer:
TI
Mfr. Part #:
UCC21755QDWRQ1
Package:
SOIC-16
Customer #:
Key Attributes:
Automotive Source/Sink Reinforced Isolated Single Channel Gate Driver for SiC/IGBT with Active Protection, Isolated Analog Sensing and High CMTI
Description:
10A 10A SOIC-16 Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-16
Quiescent Current:
3mA
Operating Temperature:
-40℃~+150℃@(Tj)
Isolation voltage(Vrms):
2121
Propagation Delay(tpd):
130ns;130ns
Load Type:
IGBT;MOSFET
Current - Output High(IOH):
10A
Voltage - Supply:
3V~5.5V;13V~33V
CMTI(kV/us):
150kV/us
Number of Channels:
1
Current - Output Low(IOL):
10A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
