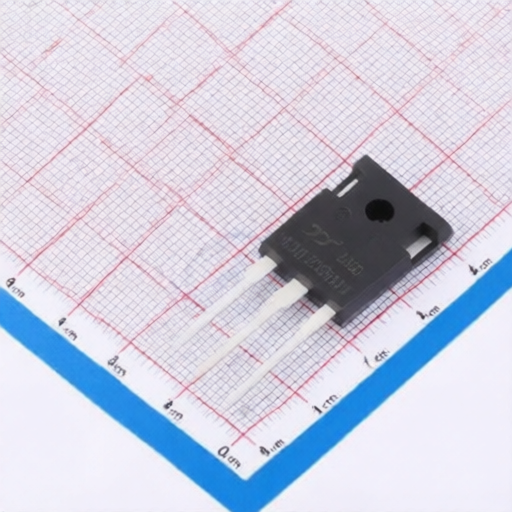

YANGJIE DGW40N120CTH1A
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
DGW40N120CTH1A
Package:
TO-247
Customer #:
Description:
375W 1.2kV TO-247 Single IGBTs RoHS
Datasheet:
YANGJIE DGW40N120CTH1A
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
200ns
Pd - Power Dissipation:
375W
Td(on):
60ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.05nF
Input Capacitance(Cies):
5.52nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.2V@1.4mA
Gate Charge(Qg):
0.27uC@15V
Pulsed Current- Forward(Ifm):
160A
Reverse Recovery Time(trr):
229ns
Switching Energy(Eoff):
1.38mJ
Turn-On Energy (Eon):
5.13mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 36 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
