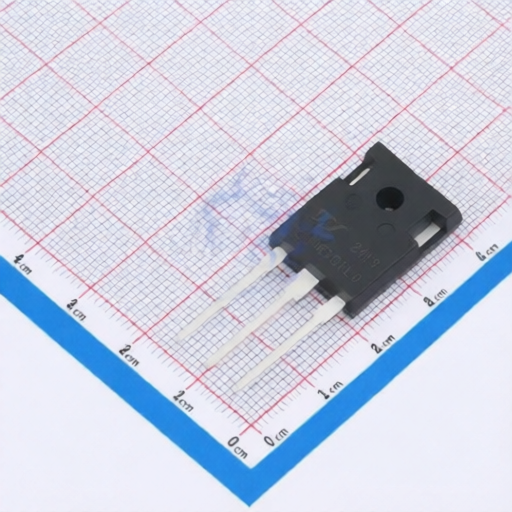

YANGJIE DGW20N65CTL0
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
DGW20N65CTL0
Package:
TO-247
Customer #:
Description:
120W 650V TO-247 Single IGBTs RoHS
Datasheet:
YANGJIE DGW20N65CTL0
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
120W
Td(off):
68ns
Td(on):
12ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
0.01nF
Input Capacitance(Cies):
900pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
0.04nF
Switching Energy(Eoff):
220uJ
Turn-On Energy (Eon):
410uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 36 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
