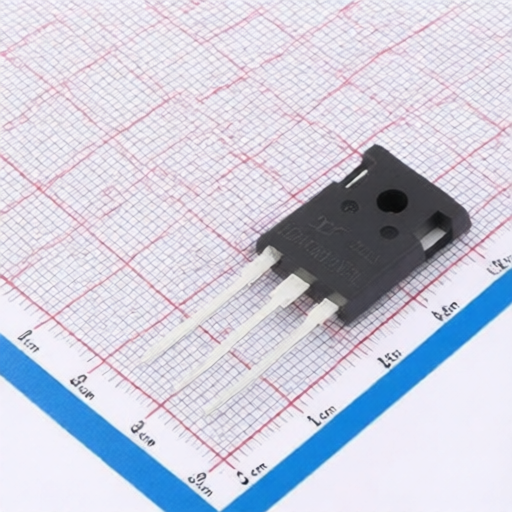

YANGJIE DGW10N120CTL
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
DGW10N120CTL
Package:
TO-247
Customer #:
Description:
157W 1.2kV FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
YANGJIE DGW10N120CTL
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
157W
Td(off):
262ns
Td(on):
85ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.035nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@500uA
Gate Charge(Qg):
0.08uC@15V
Pulsed Current- Forward(Ifm):
40A
Switching Energy(Eoff):
480uJ
Turn-On Energy (Eon):
980uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 36 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
