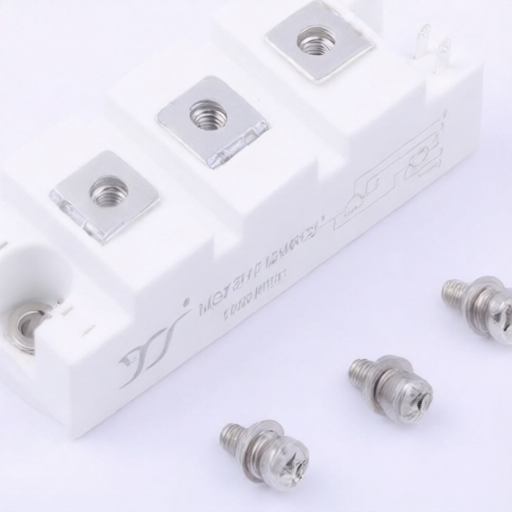

YANGJIE MG75HF12MRC1
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
MG75HF12MRC1
Package:
Screw Terminals
Customer #:
Description:
625W 1.2kV Screw Terminals Single IGBTs RoHS
Datasheet:
YANGJIE MG75HF12MRC1
Products Specifications
Manufacturer:
Package:
Screw Terminals
Td(off):
248ns
Pd - Power Dissipation:
625W
Operating Temperature:
-40℃~+150℃
Td(on):
80ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
5.5nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@3mA
Gate Charge(Qg):
780nC@15V
Pulsed Current- Forward(Ifm):
150A
Output Capacitance(Coes):
0.4nF
Reverse Recovery Time(trr):
160ns
Switching Energy(Eoff):
4.9mJ
Turn-On Energy (Eon):
7.45mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 8 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
