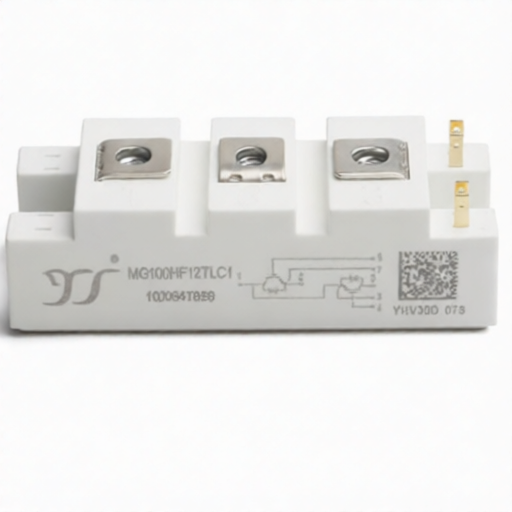

YANGJIE MG100HF12TLC1
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
MG100HF12TLC1
Package:
-
Customer #:
Description:
785W 1.2kV IGBT Module Single IGBTs RoHS
Datasheet:
YANGJIE MG100HF12TLC1
Products Specifications
Manufacturer:
Package:
-
Td(off):
232ns
Pd - Power Dissipation:
785W
Td(on):
129ns
Operating Temperature:
-40℃~+150℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
0.27nF
Input Capacitance(Cies):
8.8nF
IGBT Type:
IGBT Module
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.2V@4mA
Gate Charge(Qg):
0.68uC
Pulsed Current- Forward(Ifm):
200A
Switching Energy(Eoff):
6.7mJ
Turn-On Energy (Eon):
6.2mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
