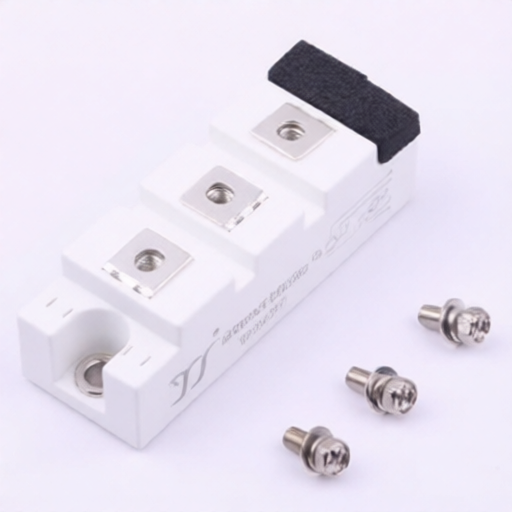

YANGJIE MG100HF12MIC1
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
MG100HF12MIC1
Package:
Screw Terminals
Customer #:
Key Attributes:
IGBT Modules, 1200V, 100A, Trench+Field Stop technology
Description:
680W 1.2kV FS (Field Stop) Screw Terminals Single IGBTs RoHS
Datasheet:
YANGJIE MG100HF12MIC1
Products Specifications
Manufacturer:
Package:
Screw Terminals
Pd - Power Dissipation:
680W
Td(off):
208ns
Td(on):
118ns
Operating Temperature:
-40℃~+150℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
8.3nF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@4mA
Gate Charge(Qg):
200nC@15V
Output Capacitance(Coes):
0.29nF
Reverse Recovery Time(trr):
110ns
Switching Energy(Eoff):
5.62mJ
Turn-On Energy (Eon):
2.93mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 8 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
