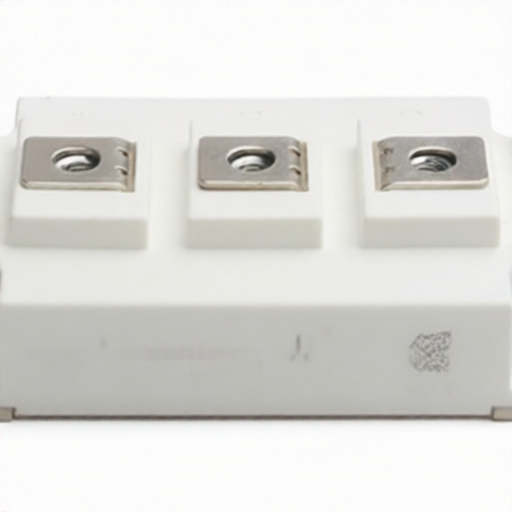

YANGJIE MG450HF12TLC2
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
MG450HF12TLC2
Package:
C2
Customer #:
Description:
2.307kW 1.2kV C2 Single IGBTs RoHS
Datasheet:
YANGJIE MG450HF12TLC2
Products Specifications
Manufacturer:
Package:
C2
Pd - Power Dissipation:
2.307kW
Td(off):
502ns
Td(on):
161ns
Operating Temperature:
-40℃~+150℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
1.1nF
Input Capacitance(Cies):
25nF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.2V@12mA
Gate Charge(Qg):
3.62uC
Pulsed Current- Forward(Ifm):
900A
Switching Energy(Eoff):
28.5mJ
Turn-On Energy (Eon):
23.2mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 6 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
