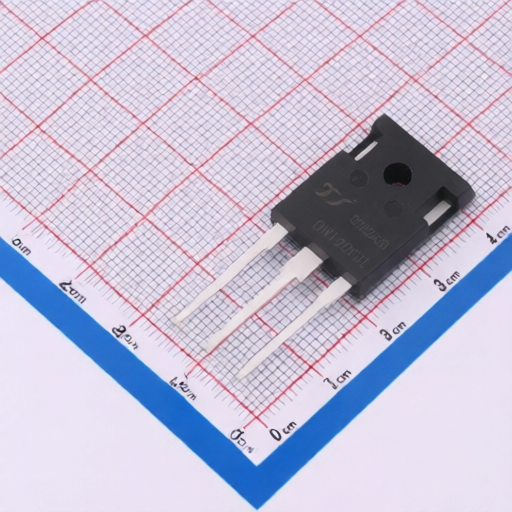

YANGJIE DGW40N120CTLQ
Manufacturer:
YANGJIE
Asian Brands
Mfr. Part #:
DGW40N120CTLQ
Package:
TO-247
Customer #:
Key Attributes:
IGBT 1.2kV 80A TO-247
Description:
IGBT 1.2kV 80A 428W Through Hole TO-247
Datasheet:
YANGJIE DGW40N120CTLQ
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
428W
Td(off):
180ns
Td(on):
45ns
Operating Temperature:
-40℃~+175℃
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
2.5nF@25V
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.8V@1.4mA
Gate Charge(Qg):
0.33uC@15V
Reverse Recovery Time(trr):
439ns
Switching Energy(Eoff):
1.7mJ
Turn-On Energy (Eon):
3.8mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
YANGJIE
2348 Products
Yangzhou Yangjie Elec Tech was founded in 2000 and is located in Yangzhou. It is a vertically integrated (IDM) manufacturer that combines semiconductor discrete device chip design and manufacturing, device packaging and testing, and end-to-end sales and services. The main product lines include MOSFETs, IGBTs, SiC-related products, rectifiers, protection devices, small signal devices, and integrated circuits.
