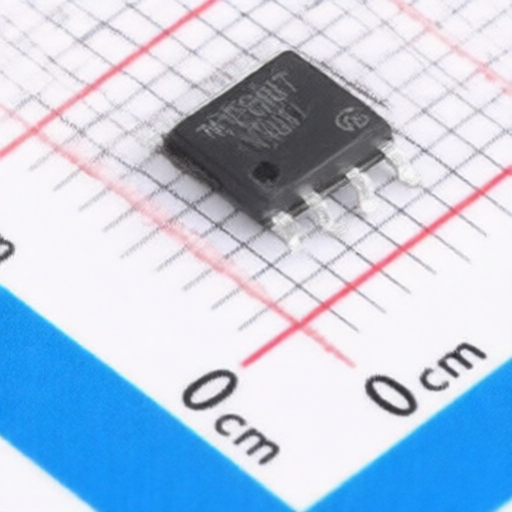

VBsemi Elec TPC8107&9-VB
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
TPC8107&9-VB
Package:
SO-8
Customer #:
Key Attributes:
MOSFET P-CH 30V 10.9A SO-8
Description:
P-Channel 30V 10.9A 2.7W Surface Mount SO-8
Datasheet:
VBsemi Elec TPC8107&9-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
10.9A
Operating Temperature -:
-55℃~+150℃
RDS(on):
11mΩ@10V;15mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1.4V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
390pF
Number:
1 P-Channel
Output Capacitance(Coss):
455pF
Input Capacitance(Ciss):
2.55nF@15V
Pd - Power Dissipation:
2.7W
Gate Charge(Qg):
29.5nC@15V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
