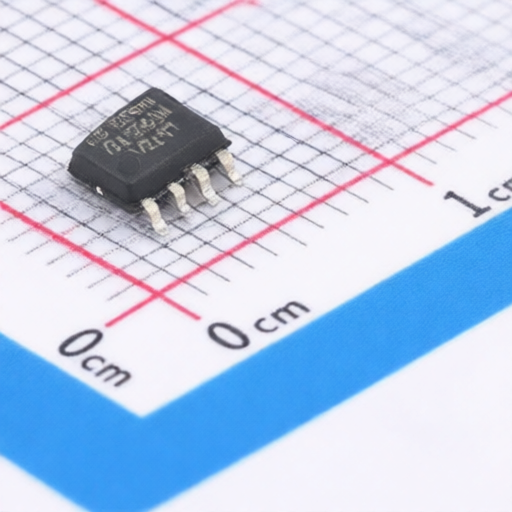

VBsemi Elec VBA1203M
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
VBA1203M
Package:
SO-8
Customer #:
Key Attributes:
MOSFET N-CH 200V 3A SO-8
Description:
N-Channel 200V 3A 96W Surface Mount SO-8
Datasheet:
VBsemi Elec VBA1203M
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
3A
Operating Temperature -:
-55℃~+175℃
RDS(on):
260mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
80pF
Number:
1 N-channel
Output Capacitance(Coss):
180pF
Input Capacitance(Ciss):
1.8nF
Pd - Power Dissipation:
96W
Gate Charge(Qg):
34nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
