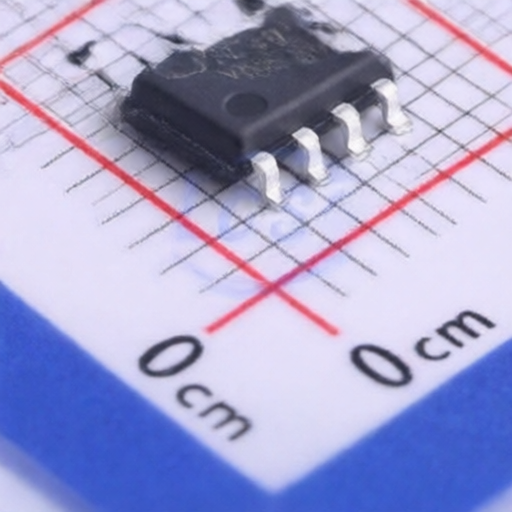

VBsemi Elec STS7NF60L-VB
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
STS7NF60L-VB
Package:
SO-8
Customer #:
Key Attributes:
MOSFET N-CH 60V 12A SO-8
Description:
N-Channel 60V 12A 2.5W Surface Mount SO-8
Datasheet:
VBsemi Elec STS7NF60L-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
12A
Operating Temperature -:
-55℃~+150℃
RDS(on):
12mΩ@10V;15mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
55pF
Number:
1 N-channel
Output Capacitance(Coss):
90pF
Input Capacitance(Ciss):
1.1nF
Pd - Power Dissipation:
2.5W
Gate Charge(Qg):
21nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
