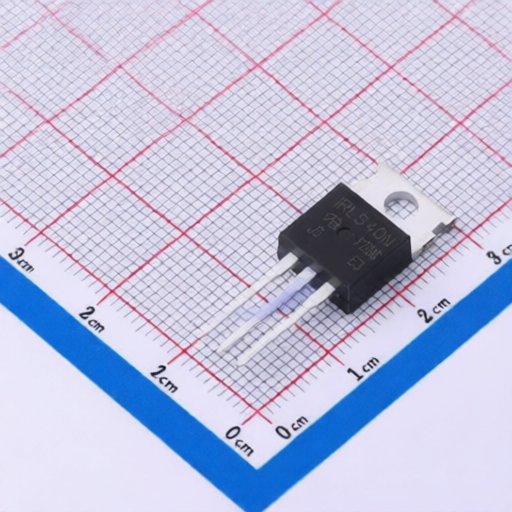

VBsemi Elec IRL540NPBF-VB
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
IRL540NPBF-VB
Package:
TO-220AB
Customer #:
Key Attributes:
MOSFET N-CH 100V 55A TO-220AB
Description:
N-Channel 100V 55A 127W Through Hole TO-220AB
Datasheet:
VBsemi Elec IRL540NPBF-VB
Products Specifications
Manufacturer:
Package:
TO-220AB
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
55A
Operating Temperature -:
-55℃~+175℃
RDS(on):
36mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
90pF
Number:
1 N-channel
Output Capacitance(Coss):
270pF
Pd - Power Dissipation:
127W
Input Capacitance(Ciss):
4.5nF
Gate Charge(Qg):
35nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
