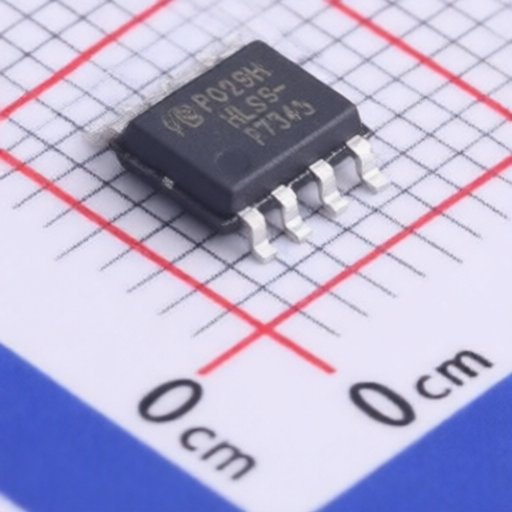

VBsemi Elec IRF7343TRPBF-VB
Manufacturer:
VBsemi Elec
Asian Brands
Mfr. Part #:
IRF7343TRPBF-VB
Package:
SO-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 60V 5.3A SO-8
Description:
N-Channel+P-Channel Array 60V 5.3A 3.1W 3.4W Surface Mount SO-8
Datasheet:
VBsemi Elec IRF7343TRPBF-VB
Products Specifications
Manufacturer:
Package:
SO-8
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
5.3A
Operating Temperature -:
-55℃~+150℃
RDS(on):
26mΩ@10V;55mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1V
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
40pF@15V
Number:
1 N-Channel + 1 P-Channel
Input Capacitance(Ciss):
665pF@15V
Pd - Power Dissipation:
3.1W;3.4W
Gate Charge(Qg):
14.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
VBsemi Elec
192 Products
VBsemi Elec was established in 2012 and is a company based in Taiwan, China, focusing on the research, development, production, and sales of MOSFET power semiconductor components. It has obtained multiple product invention patents and has been certified with ISO14001, QS9000, and ISO9001. The company primarily produces MOSFET power semiconductor components.
