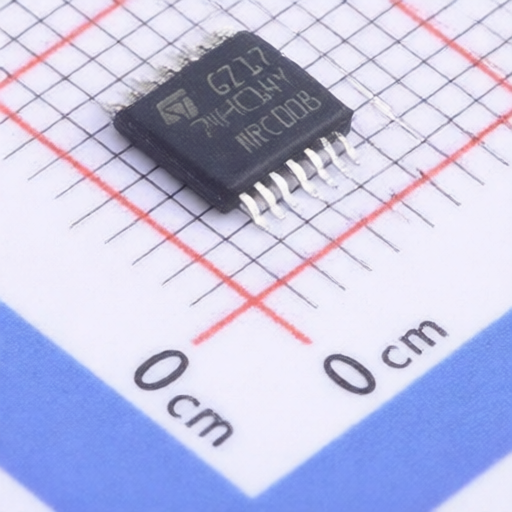

ST M74HC14YTTR
Manufacturer:
ST
Mfr. Part #:
M74HC14YTTR
Package:
TSSOP-14
Customer #:
Key Attributes:
Hex Schmitt inverter
Description:
Schmitt trigger 12ns@6V,50pF 1uA 2V~6V 6 TSSOP-14 Gates and Inverters RoHS
Datasheet:
ST M74HC14YTTR
Products Specifications
Manufacturer:
Package:
TSSOP-14
Operating Temperature:
-55℃~+125℃
Series:
74HC
Input Type:
Schmitt trigger
Input Logic Level - High:
1V~1.5V;2.3V~3.15V;3V~4.2V
Input Logic Level - Low:
300mV~900mV;1.13V~2V;1.5V~2.6V
Output Logic Level - Low:
100mV;170mV~260mV;180mV~260mV
Output Logic Level - High:
1.9V;4.4V~4.5V;5.9V~6V
Propagation Delay:
12ns@6V,50pF
Quiescent Current(Iq):
1uA
Voltage - Supply:
2V~6V
Number of Circuits:
6
Current - Output High(IOH):
4mA
Current - Output Low(IOL):
4mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
