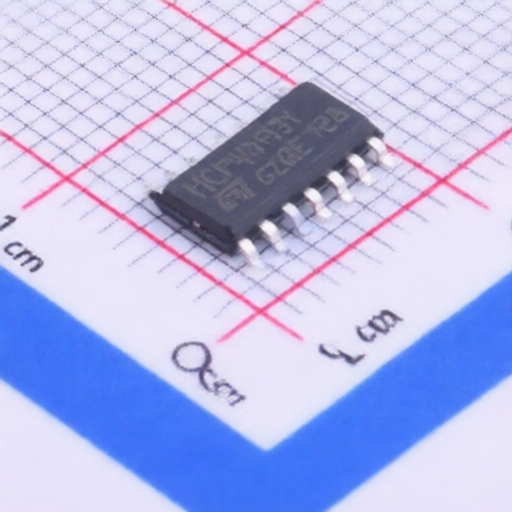

ST HCF4093YM013TR
Manufacturer:
ST
Mfr. Part #:
HCF4093YM013TR
Package:
SOIC-14
Customer #:
Key Attributes:
Quad 2-input NAND Schmitt trigger
Description:
20uA 130ns@15V,50pF 3V~20V SOIC-14 Gates and Inverters RoHS
Datasheet:
ST HCF4093YM013TR
Products Specifications
Manufacturer:
Package:
SOIC-14
Input Logic Level - High:
3.6V~10.8V
Input Logic Level - Low:
900mV~4V
Series:
4000 Series
Operating Temperature:
-40℃~+125℃
Output Logic Level - Low:
50mV
Output Logic Level - High:
4.95V;9.95V;14.95V
Quiescent Current(Iq):
20uA
Propagation Delay:
130ns@15V,50pF
Voltage - Supply:
3V~20V
Current - Output High(IOH):
6.8mA
Number of Channels:
4;2
Current - Output Low(IOL):
6.8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ST
9271 Products
STMicroelectronics is a global independent semiconductor company and a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions, STMicroelectronics is at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
