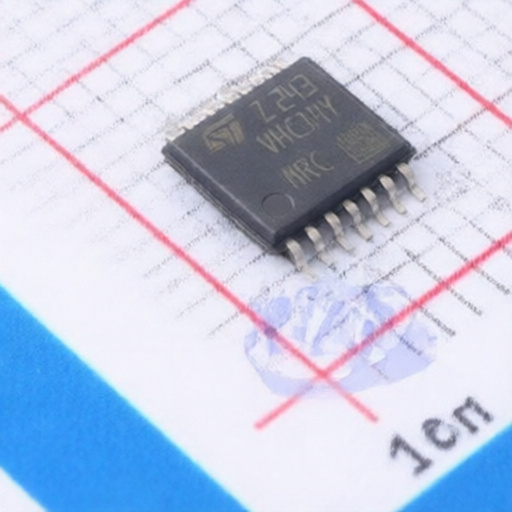

ST 74VHC14YTTR
Manufacturer:
ST
Mfr. Part #:
74VHC14YTTR
Package:
TSSOP-14-175mil
Customer #:
Key Attributes:
HEX SCHMITT INVERTER
Description:
20uA 5.5ns@5V,15pF 2V~5.5V TSSOP-14-175mil Gates and Inverters RoHS
Datasheet:
ST 74VHC14YTTR
Products Specifications
Manufacturer:
Package:
TSSOP-14-175mil
Operating Temperature:
-55℃~+125℃
Input Logic Level - Low:
900mV~1.9V;1.35V~2.75V;1.65V~3.35V
Series:
74VHC
Input Logic Level - High:
1.2V~2.2V;1.75V~3.15V;2.15V~3.85V
Output Logic Level - Low:
0V~100mV;360mV;440mV;550mV
Output Logic Level - High:
1.9V~2V;2.9V~3V;4.4V~4.5V;2.58V;3.94V
Quiescent Current(Iq):
20uA
Propagation Delay:
5.5ns@5V,15pF
Voltage - Supply:
2V~5.5V
Current - Output High(IOH):
8mA
Number of Channels:
1;6
Current - Output Low(IOL):
8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ST
9271 Products
STMicroelectronics is a global independent semiconductor company and a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions, STMicroelectronics is at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
