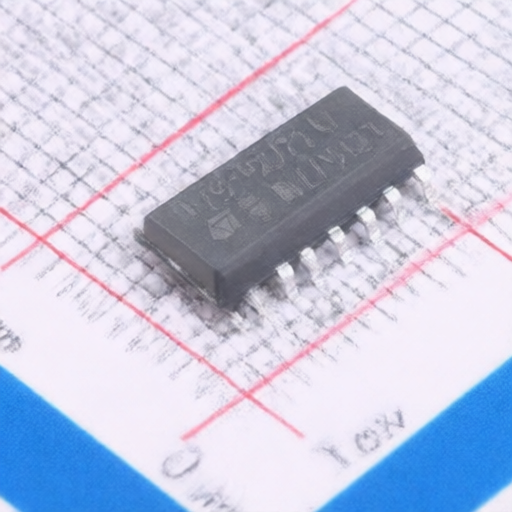

ST HCF4070YM013TR
Manufacturer:
ST
Mfr. Part #:
HCF4070YM013TR
Package:
SOIC-14
Customer #:
Key Attributes:
Quad exclusive OR gate
Description:
100ns@15V,50pF 20uA 3V~20V SOIC-14 Gates and Inverters RoHS
Datasheet:
ST HCF4070YM013TR
Products Specifications
Manufacturer:
Package:
SOIC-14
Input Logic Level - High:
3.5V~11V
Series:
4000 Series
Operating Temperature:
-40℃~+125℃
Input Logic Level - Low:
1.5V~4V
Output Logic Level - Low:
50mV
Output Logic Level - High:
4.95V;9.95V;14.95V
Propagation Delay:
100ns@15V,50pF
Quiescent Current(Iq):
20uA
Voltage - Supply:
3V~20V
Current - Output High(IOH):
6.8mA
Number of Channels:
4;2
Current - Output Low(IOL):
6.8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
