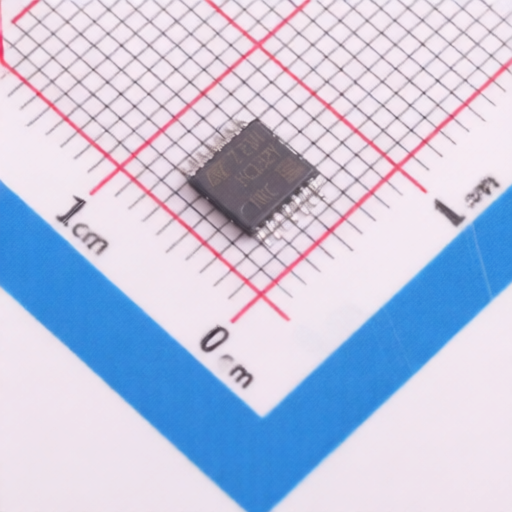

ST M74HC132YTTR
Manufacturer:
ST
Mfr. Part #:
M74HC132YTTR
Package:
TSSOP-14-175mil
Customer #:
Key Attributes:
QUAD 2-INPUT SCHMITT NAND GATE
Description:
11ns@6V,50pF 1uA 2V~6V TSSOP-14-175mil Gates and Inverters RoHS
Datasheet:
ST M74HC132YTTR
Products Specifications
Manufacturer:
Package:
TSSOP-14-175mil
Input Logic Level - Low:
300mV~1.5V
Input Logic Level - High:
1.5V~4.2V
Series:
74HC Series
Operating Temperature:
-40℃~+125℃
Output Logic Level - Low:
0V~100mV;170mV~260mV;180mV~260mV
Output Logic Level - High:
1.9V~2V;4.4V~4.5V;5.9V~6V
Propagation Delay:
11ns@6V,50pF
Quiescent Current(Iq):
1uA
Voltage - Supply:
2V~6V
Current - Output High(IOH):
5.2mA
Number of Channels:
4;2
Current - Output Low(IOL):
5.2mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
