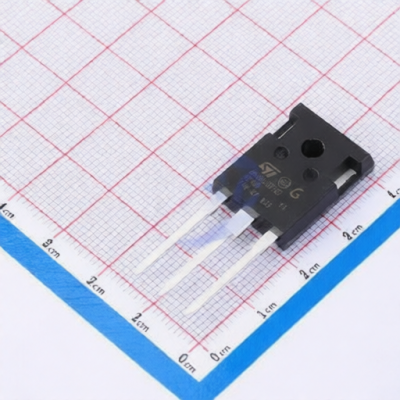

ST STGWA40H65DFB2
Manufacturer:
ST
Mfr. Part #:
STGWA40H65DFB2
Package:
TO-247
Customer #:
Key Attributes:
Trench gate field-stop, 650 V, 40 A, high-speed HB2 series IGBT in a TO-247 long leads package
Description:
230W 650V FS (Field Stop) TO-247 Single IGBTs RoHS
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
72ns
Pd - Power Dissipation:
230W
Td(on):
18ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
64pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Gate Charge(Qg):
153nC@15V
Reverse Recovery Time(trr):
75ns
Switching Energy(Eoff):
410uJ
Turn-On Energy (Eon):
765uJ
Input Capacitance(Cies):
2.3nF
Pulsed Current- Forward(Ifm):
160A
Output Capacitance(Coes):
122pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
