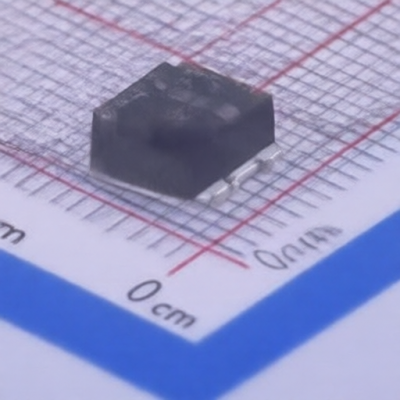

ST STGD18N40LZT4
Manufacturer:
ST
Mfr. Part #:
STGD18N40LZT4
Package:
DPAK
Customer #:
Key Attributes:
IGBT 420V DPAK
Description:
IGBT 420V Surface Mount DPAK
Products Specifications
Manufacturer:
Package:
DPAK
Td(off):
13.5us
Pd - Power Dissipation:
150W
Td(on):
650ns
Operating Temperature:
-55℃~+175℃@(Tj)
Collector-Emitter Breakdown Voltage (Vces):
420V
Reverse Transfer Capacitance (Cres):
5pF
Input Capacitance(Cies):
490pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
1.2V@1mA
Gate Charge(Qg):
29nC
Output Capacitance(Coes):
90pF
Turn-On Energy (Eon):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ST
9271 Products
STMicroelectronics is a global independent semiconductor company and a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio, and strategic partners positions, STMicroelectronics is at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.
