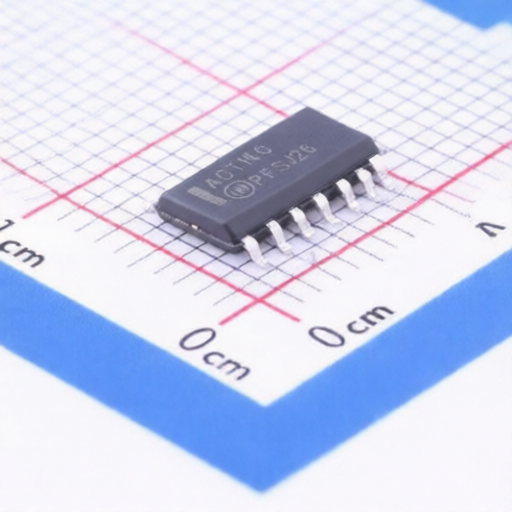

onsemi MC74ACT14DR2G
Manufacturer:
onsemi
Mfr. Part #:
MC74ACT14DR2G
Package:
SOIC-14
Customer #:
Key Attributes:
Hex Inverter Schmitt Trigger
Description:
Schmitt trigger 11.5ns@5V,50pF 4uA 4.5V~5.5V SOIC-14 Gates and Inverters RoHS
Datasheet:
onsemi MC74ACT14DR2G
Products Specifications
Manufacturer:
Package:
SOIC-14
Operating Temperature:
-40℃~+85℃
Logic Family:
74ACT Series
Input Type:
Schmitt trigger
Output Logic Level - Low:
440mV
Propagation Delay:
11.5ns@5V,50pF
Quiescent Current(Iq):
4uA
Input Logic Level -Low:
800mV
Voltage - Supply:
4.5V~5.5V
Current - Output High(IOH):
24mA
Number of Channels:
6;1
Output Logic Level - High:
4.76V
Current - Output Low(IOL):
24mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
