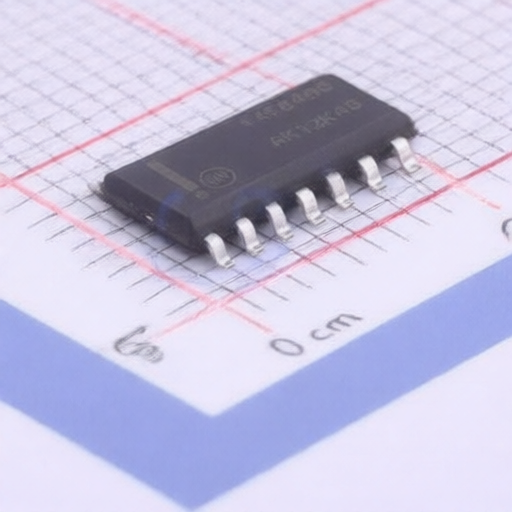

onsemi MC14584BDR2G
Manufacturer:
onsemi
Mfr. Part #:
MC14584BDR2G
Package:
SOIC-14
Customer #:
Key Attributes:
Hex Schmitt Trigger
Description:
Schmitt trigger 80ns@15V,50pF 1uA 3V~18V SOIC-14 Gates and Inverters RoHS
Datasheet:
onsemi MC14584BDR2G
Products Specifications
Manufacturer:
Package:
SOIC-14
Operating Temperature:
-55℃~+125℃
Logic Family:
4000B Series
Input Type:
Schmitt trigger
Propagation Delay:
80ns@15V,50pF
Quiescent Current(Iq):
1uA
Input Logic Level -Low:
1.6V~4.6V
Voltage - Supply:
3V~18V
Current - Output High(IOH):
8.8mA
Number of Channels:
6;1
Current - Output Low(IOL):
8.8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
