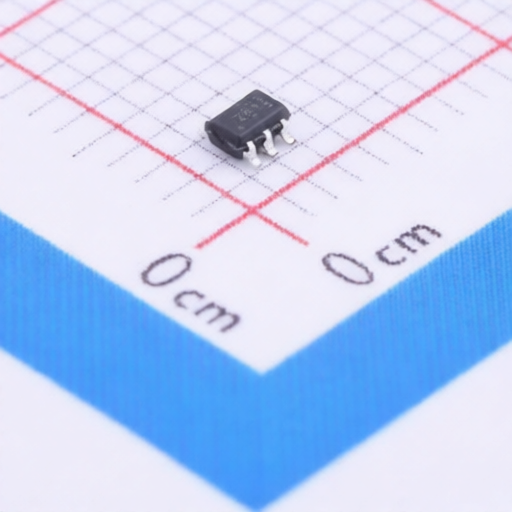

onsemi NC7SZ04P5X
Manufacturer:
onsemi
Mfr. Part #:
NC7SZ04P5X
Package:
SOT-353
Customer #:
Key Attributes:
TinyLogic uHS Inverter
Description:
4.3ns@5V,50pF 20uA 1.65V~5.5V SOT-353 Gates and Inverters RoHS
Datasheet:
onsemi NC7SZ04P5X
Products Specifications
Manufacturer:
Package:
SOT-353
Logic Family:
7SZ Series
Operating Temperature:
-40℃~+85℃
Input Type:
-
Output Logic Level - Low:
550mV
Propagation Delay:
4.3ns@5V,50pF
Quiescent Current(Iq):
20uA
Input Logic Level -Low:
-
Voltage - Supply:
1.65V~5.5V
Number of Channels:
1;1
Current - Output High(IOH):
32mA
Output Logic Level - High:
2.3V;3.8V
Current - Output Low(IOL):
32mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
