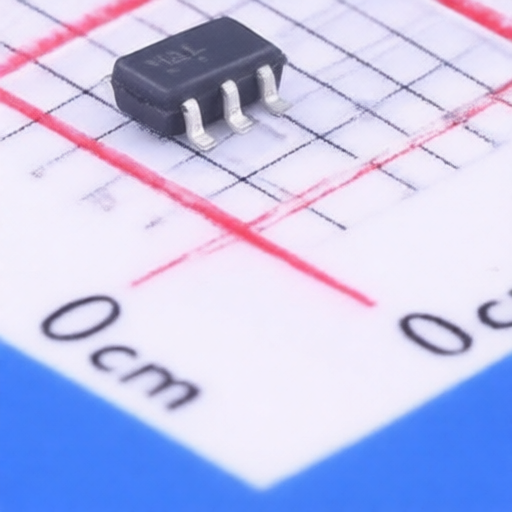

onsemi NL27WZ14DTT1G
Manufacturer:
onsemi
Mfr. Part #:
NL27WZ14DTT1G
Package:
TSOP-6-1.5mm
Customer #:
Key Attributes:
Dual Schmitt-Trigger Inverter
Description:
Schmitt trigger 10uA 5.5ns@5.0V,50pF 1.65V~5.5V 2 TSOP-6-1.5mm Gates and Inverters RoHS
Datasheet:
onsemi NL27WZ14DTT1G
Products Specifications
Manufacturer:
Package:
TSOP-6-1.5mm
Operating Temperature:
-55℃~+125℃
Input Type:
Schmitt trigger
Output Logic Level - Low:
240mV;300mV;400mV;550mV
Quiescent Current(Iq):
10uA
Propagation Delay:
5.5ns@5.0V,50pF
Voltage - Supply:
1.65V~5.5V
Number of Channels:
2
Current - Output High(IOH):
24mA
Output Logic Level - High:
1.29V;1.9V;2.2V;2.4V;3.8V
Current - Output Low(IOL):
24mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
