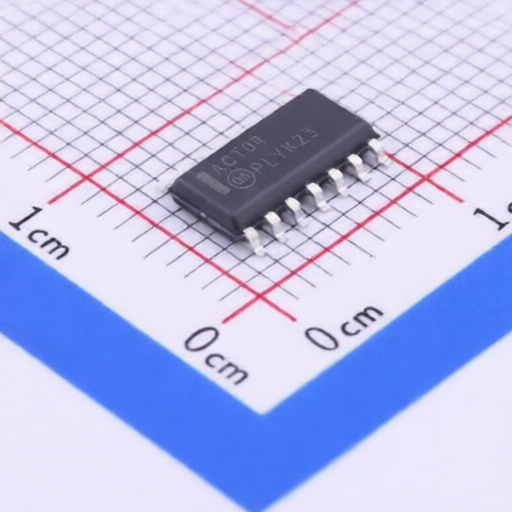

onsemi 74ACT04SCX
Manufacturer:
onsemi
Mfr. Part #:
74ACT04SCX
Package:
SOIC-14
Customer #:
Key Attributes:
Hex Inverter
Description:
4uA 8.5ns@5V,50pF 4.5V~5.5V SOIC-14 Gates and Inverters RoHS
Datasheet:
onsemi 74ACT04SCX
Products Specifications
Manufacturer:
Package:
SOIC-14
Operating Temperature:
-40℃~+85℃
Logic Family:
74ACT Series
Input Type:
-
Output Logic Level - Low:
440mV
Quiescent Current(Iq):
4uA
Propagation Delay:
8.5ns@5V,50pF
Input Logic Level -Low:
800mV
Voltage - Supply:
4.5V~5.5V
Current - Output High(IOH):
24mA
Number of Channels:
6;1
Output Logic Level - High:
3.76V
Current - Output Low(IOL):
24mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
