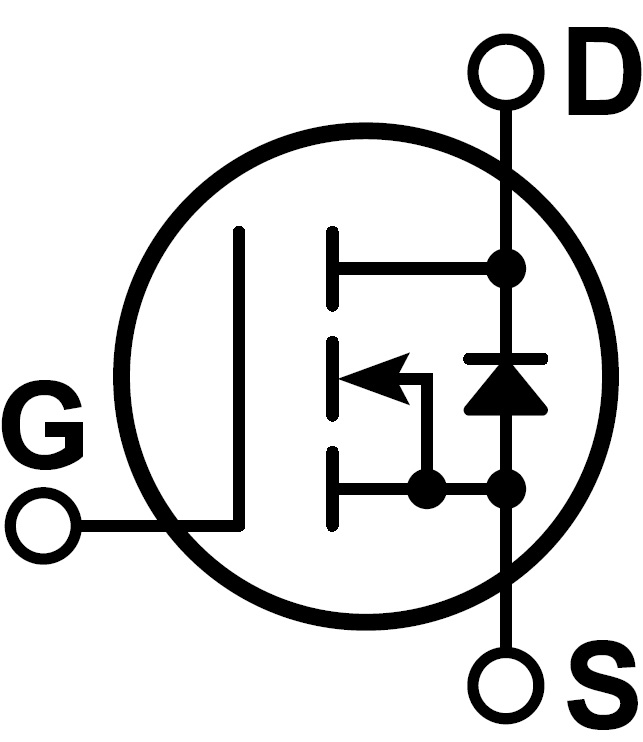

MICROCHIP APT24F50B
Manufacturer:
MICROCHIP
Mfr. Part #:
APT24F50B
Package:
TO-247-3
Customer #:
Description:
500V 103A 36mΩ@10V 5V@250uA 1 N-channel 960W TO-247-3 Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APT24F50B
Products Specifications
Manufacturer:
Package:
TO-247-3
Drain to Source Voltage:
500V
Current - Continuous Drain(Id):
103A
RDS(on):
36mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
330pF
Number:
1 N-channel
Output Capacitance(Coss):
2.645nF
Input Capacitance(Ciss):
24.6nF
Pd - Power Dissipation:
960W
Gate Charge(Qg):
620nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
