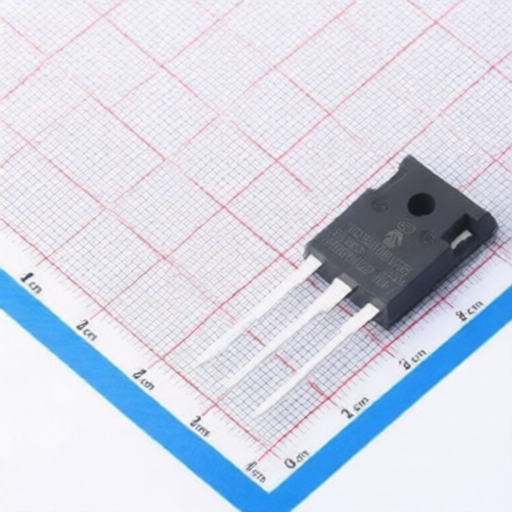

MICROCHIP MSC080SMA120B
Manufacturer:
MICROCHIP
Mfr. Part #:
MSC080SMA120B
Package:
TO-247
Customer #:
Key Attributes:
SiC N-Channel Power MOSFET
Description:
1.2kV 40A 100mΩ 2.8V 231W TO-247 Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP MSC080SMA120B
Products Specifications
Manufacturer:
Package:
TO-247
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
40A
Operating Temperature -:
-55℃~+175℃
RDS(on):
100mΩ
Gate Threshold Voltage (Vgs(th)):
2.8V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
6.2pF
Input Capacitance(Ciss):
1.1nF
Output Capacitance(Coss):
91pF
Pd - Power Dissipation:
231W
Gate Charge(Qg):
72nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
