MICROCHIP APT13F120B
Manufacturer:
MICROCHIP
Mfr. Part #:
APT13F120B
Package:
TO-247
Customer #:
Key Attributes:

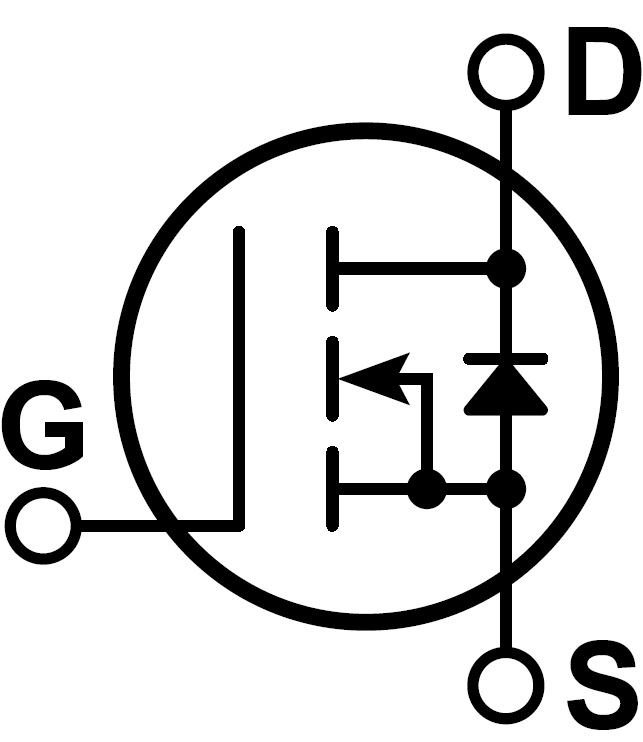

MOSFET N-CH 1.2kV 14A TO-247
Description:
N-Channel 1.2kV 14A 625W Through Hole TO-247
Datasheet:
MICROCHIP APT13F120B
Products Specifications
Manufacturer:
Package:
TO-247
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
14A
Operating Temperature -:
-55℃~+150℃@(Tj)
RDS(on):
-
Gate Threshold Voltage (Vgs(th)):
5V
Number:
1 N-channel
Input Capacitance(Ciss):
4.765nF@25V
Pd - Power Dissipation:
625W
Gate Charge(Qg):
145nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
