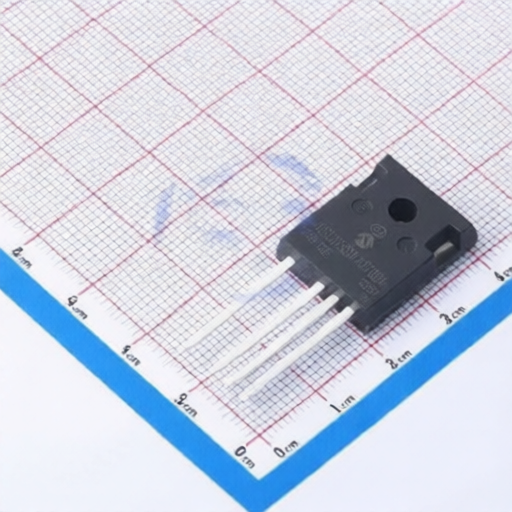

MICROCHIP MSC015SMA070B4
Manufacturer:
MICROCHIP
Mfr. Part #:
MSC015SMA070B4
Package:
TO-247-4
Customer #:
Key Attributes:
Silicon Carbide N-Channel Power MOSFET
Description:
700V 140A 19mΩ 2.4V 455W TO-247-4 Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP MSC015SMA070B4
Products Specifications
Manufacturer:
Package:
TO-247-4
Drain to Source Voltage:
700V
Current - Continuous Drain(Id):
140A
Operating Temperature -:
-55℃~+175℃
RDS(on):
19mΩ
Gate Threshold Voltage (Vgs(th)):
2.4V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
29pF
Input Capacitance(Ciss):
4.5nF
Output Capacitance(Coss):
510pF
Pd - Power Dissipation:
455W
Gate Charge(Qg):
215nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
