MASPOWER MS330N15JDF4
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS330N15JDF4
Package:
SOT-227
Customer #:
Key Attributes:

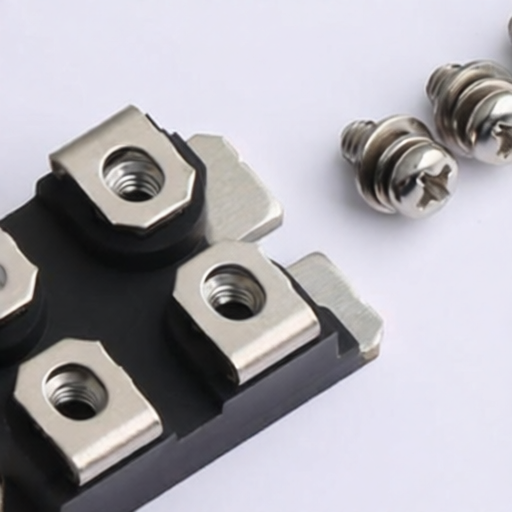

MOSFET N-CH 150V 330A SOT-227
Description:
N-Channel 150V 330A 893W Screw Terminals SOT-227
Datasheet:
MASPOWER MS330N15JDF4
Products Specifications
Manufacturer:
Package:
SOT-227
Drain to Source Voltage:
150V
Current - Continuous Drain(Id):
330A
RDS(on):
4.5mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
630pF
Number:
1 N-channel
Output Capacitance(Coss):
2.7nF
Pd - Power Dissipation:
893W
Input Capacitance(Ciss):
47nF
Gate Charge(Qg):
650nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
