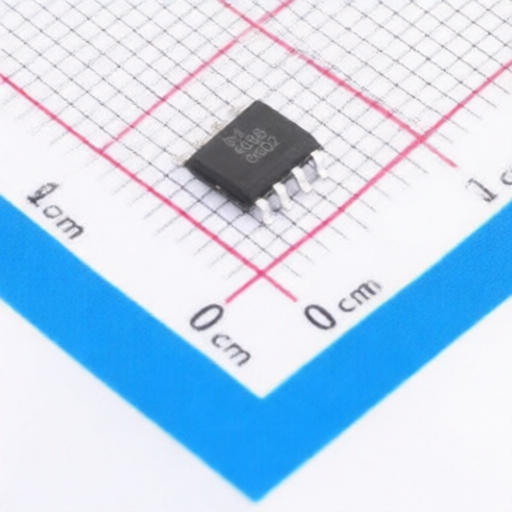

MASPOWER MSN4688
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MSN4688
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 60V 5A SOP-8
Description:
N-Channel+P-Channel 60V 5A 1.3W Surface Mount SOP-8
Datasheet:
MASPOWER MSN4688
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
60V;45V
Current - Continuous Drain(Id):
5A;3.5A
RDS(on):
55mΩ@4.5V;100mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
45pF;50pF
Number:
1 N-channel
Output Capacitance(Coss):
70pF
Input Capacitance(Ciss):
915pF;1.05nF
Pd - Power Dissipation:
1.3W
Gate Charge(Qg):
19nC@10V;22nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
