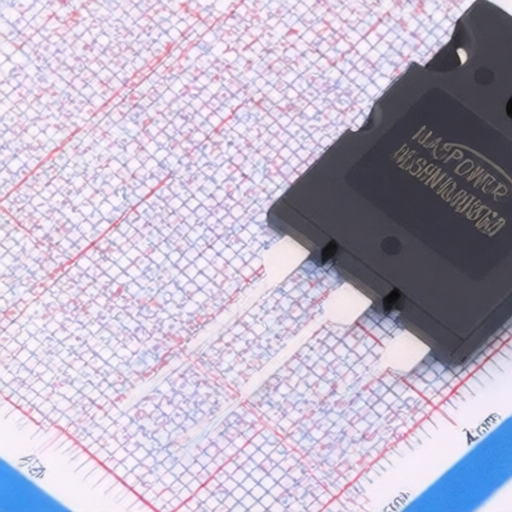

MASPOWER MS55N100HGB3
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS55N100HGB3
Package:
TO-264
Customer #:
Key Attributes:
MOSFET N-CH 1kV 55A TO-264
Description:
N-Channel 1kV 55A 1042W Through Hole TO-264
Datasheet:
MASPOWER MS55N100HGB3
Products Specifications
Manufacturer:
Package:
TO-264
Drain to Source Voltage:
1kV
Current - Continuous Drain(Id):
55A
Operating Temperature -:
-40℃~+150℃
RDS(on):
280mΩ@10V
Gate Threshold Voltage (Vgs(th)):
5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
27pF
Number:
-
Output Capacitance(Coss):
758pF
Pd - Power Dissipation:
1.042kW
Input Capacitance(Ciss):
8.442nF
Gate Charge(Qg):
200nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
