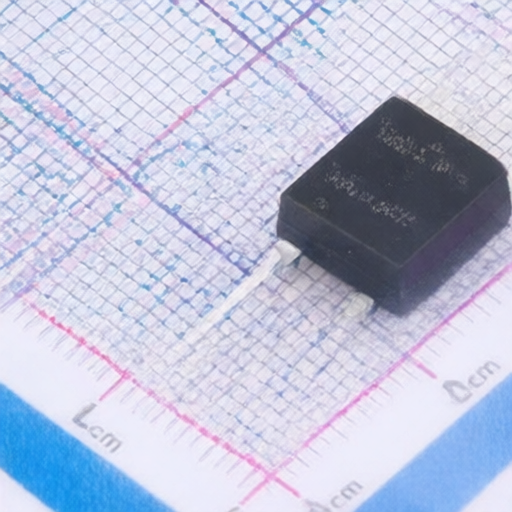

MASPOWER MS130N20JDT0
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS130N20JDT0
Package:
TO-220
Customer #:
Description:
200V 130A 12mΩ@10V 4V@250uA 1 N-channel 357W TO-220 Single FETs, MOSFETs RoHS
Datasheet:
MASPOWER MS130N20JDT0
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
200V
Configuration:
-
Current - Continuous Drain(Id):
130A
Operating Temperature -:
-55℃~+150℃
RDS(on):
12mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Reverse Transfer Capacitance (Crss@Vds):
10pF
Number:
1 N-channel
Output Capacitance(Coss):
420pF
Pd - Power Dissipation:
357W
Input Capacitance(Ciss):
4.1nF
Gate Charge(Qg):
60nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
