MASPOWER MS350N10JDC0
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS350N10JDC0
Package:

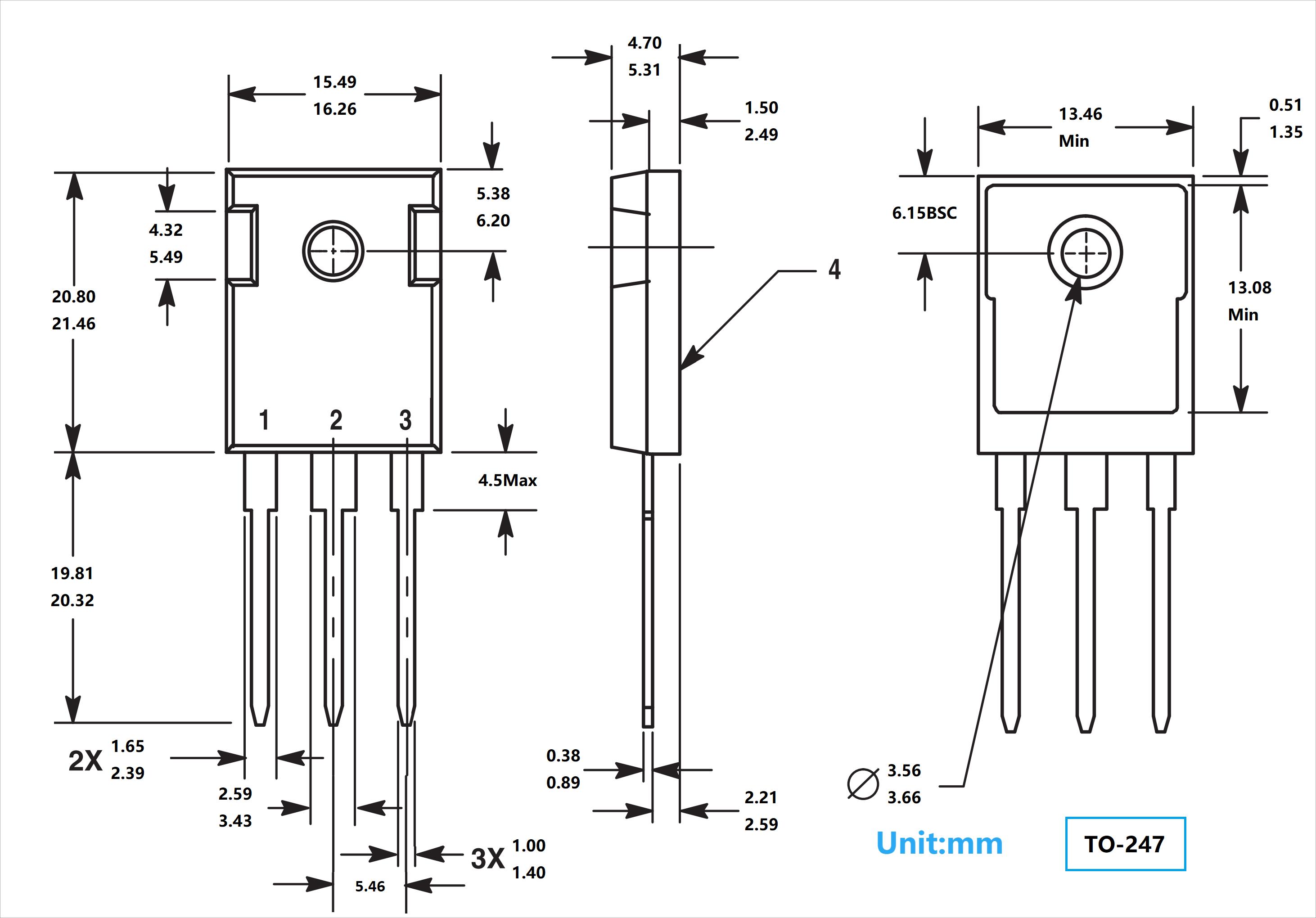

TO-247
Customer #:
Key Attributes:
MOSFET 100V 350A TO-247
Description:
100V 350A 2.3mΩ@10V 3V 463W TO-247 Single FETs, MOSFETs RoHS
Datasheet:
MASPOWER MS350N10JDC0
Products Specifications
Manufacturer:
Package:
TO-247
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
350A
RDS(on):
2.3mΩ@10V
Operating Temperature -:
-55℃~+100℃
Gate Threshold Voltage (Vgs(th)):
3V
Reverse Transfer Capacitance (Crss@Vds):
630pF
Input Capacitance(Ciss):
47nF
Output Capacitance(Coss):
2.7nF
Pd - Power Dissipation:
463W
Gate Charge(Qg):
650nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
