MASPOWER MS220N10JDP0
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS220N10JDP0
Package:

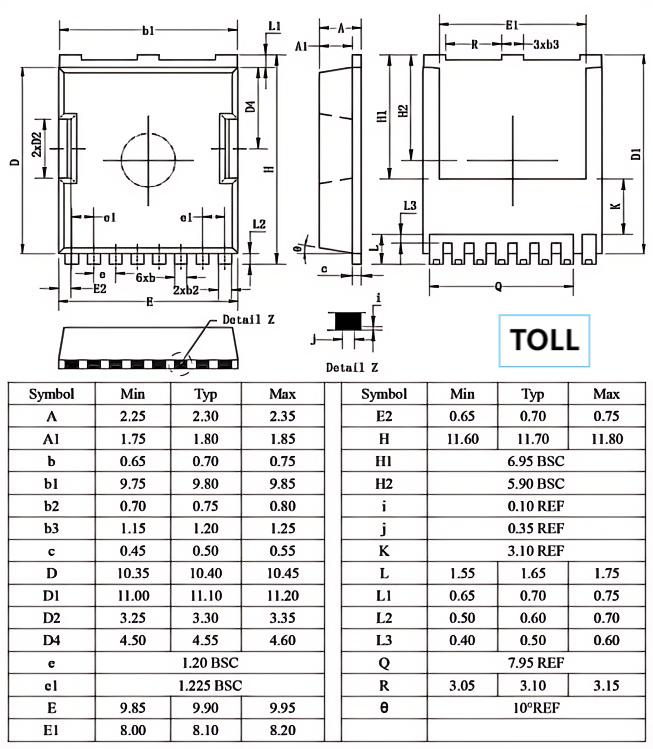

TOLL-8
Customer #:
Key Attributes:
MOSFET N-CH 100V 220A TOLL-8
Description:
100V 220A 1.9mΩ@10V 3V 1 N-channel 272W TOLL-8 Single FETs, MOSFETs RoHS
Datasheet:
MASPOWER MS220N10JDP0
Products Specifications
Manufacturer:
Package:
TOLL-8
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
220A
RDS(on):
1.9mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
52pF
Number:
1 N-channel
Input Capacitance(Ciss):
12.3nF
Output Capacitance(Coss):
1.435nF
Pd - Power Dissipation:
272W
Gate Charge(Qg):
176nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
