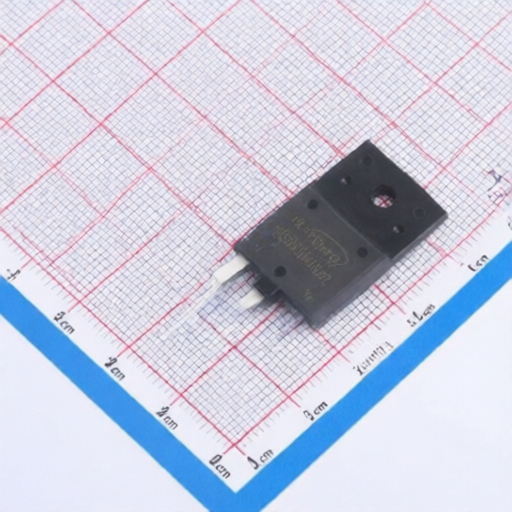

MASPOWER MS5N170HGB2
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS5N170HGB2
Package:
TO-3PF
Customer #:
Key Attributes:
MOSFET N-CH 1.7kV 5A TO-3PF
Description:
N-Channel 1.7kV 5A 56W Through Hole TO-3PF
Datasheet:
MASPOWER MS5N170HGB2
Products Specifications
Manufacturer:
Package:
TO-3PF
Drain to Source Voltage:
1.7kV
Current - Continuous Drain(Id):
5A
RDS(on):
8Ω@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
14pF
Input Capacitance(Ciss):
790pF
Output Capacitance(Coss):
101pF
Pd - Power Dissipation:
56W
Gate Charge(Qg):
49.8nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
