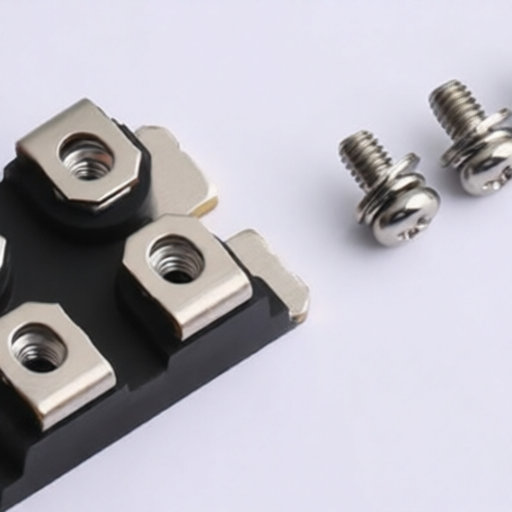

MASPOWER MS66N85IDF4
Manufacturer:
MASPOWER
Asian Brands
Mfr. Part #:
MS66N85IDF4
Package:
SOT-227
Customer #:
Key Attributes:
MOSFET N-CH 850V 66A SOT-227
Description:
N-Channel 850V 66A 1566W Screw Terminals SOT-227
Datasheet:
MASPOWER MS66N85IDF4
Products Specifications
Manufacturer:
Package:
SOT-227
Configuration:
-
Drain to Source Voltage:
850V
Current - Continuous Drain(Id):
66A
Operating Temperature -:
-55℃~+150℃
RDS(on):
83mΩ@15V
Gate Threshold Voltage (Vgs(th)):
4.6V@250uA
Reverse Transfer Capacitance (Crss@Vds):
100pF
Number:
1 N-channel
Output Capacitance(Coss):
8.5nF
Input Capacitance(Ciss):
8.6nF
Pd - Power Dissipation:
1.566kW
Gate Charge(Qg):
220nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MASPOWER
255 Products
Shenzhen Maspower Semiconductor Co., Ltd.
(hereinafter referred to as "Maspower") was established in 2013 and has been focusing on the R&D, design and sales of semiconductor integrated circuits, power devices, MCUs and other products. It is headquartered in Shenzhen, China and has R&D centers in Shanghai, China. The company's main products are super junction MOSFET, low voltage MOSFET, high voltage MOSFET, NTP-IGBT, FS-IGBT, FRD, FRD MODULES, IC and MUC etc., which are widely used in welding equipment, industrial control, new energy, electric vehicle, power supply, medical equipment and other fields. Maspower carry out resource integration and innovative development in material preparation, chip design, manufacturing process, packaging and testing, drive applications, etc. on a global scale, covering all aspects of the industrial chain, and our products have reached a new level in the international field. Maspower mission is to optimize device performance and minimize system costs thro
